COD. 035

DAV cube

Category
DAV cube
COD. 035
DAV cube

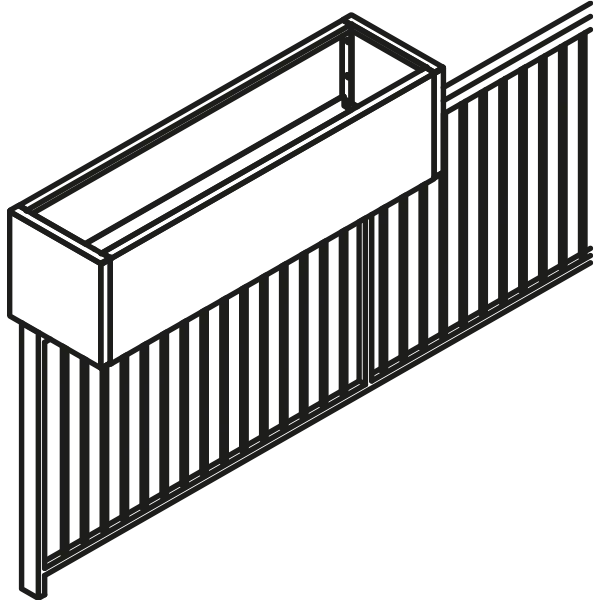

The version of Cube specially developed to be fixed on walls or parapets of terraces. The uniqueness of this version, in addition to the fixing technique, lies in the excess water collection system of the planters and the channeling inside the structure of the planter,in order to avoid the formation of dirt or the accumulation of water on the low walls.Cube DAV is equipped with a provision for the collection and channeling of water, and as an option, a kit of custom-made pipes and fittings is available.
DAV cube
DAV cube

Adjustable Bottom

Modularte planters are provided with a steel bottomthat can be adjusted in height, allowing perfect adaptation to the typeof plant, whether short-rooted or long rooted. This feature helps amaintain the overall weight of the planter, potting soil and plants inline with the load capacity of the terrace. It is essential to consider thatthe main contribution to the weight of a planter comes from the water-saturated potting soil and not from the material that makes up the planter.

Thermal Transmittance

Modularte planters optimize thermal efficiency with 4 Enkadrain panels, reducing heat transfer and improving plant comfort. They promote root aeration and prevent wet soil contact with metal. PVC on the steel bottom manages water, preventing overheating and ensuring long life. This helps preserve plant viability over time, providing an excellent solution for cultivation.

Reserve Water

Modularte planters implement an innovative drainage system with a PVC second bottom, allowing even distribution of water without leaching soil. The length of the drain can be adjusted, and a root inhibitor filter is included. Sub-irrigation ensures 70% water savings, promoting sustainable practices.

Ducted Drain

Our drainage system is designed for efficient drainage of inexcess water. You can easily connect the drain to pipes to channel water and direct it to the nearest terrace drain. This effectivelyprevents unwanted water spills and keeps the floor clean and dry, ensuring a tidy and safe environment.

Expansive

Cubo DAV offers the option of including front and rear "sheer" walls, which extend beyond the top edge of the wall, providing additional coverage and ensuring a minimal, linear design. This version also allows for the installation of walls with integrated frangivista panels or glazing. This is an excellent solution for increasing the height of parapets that do not meet minimum safety requirements.

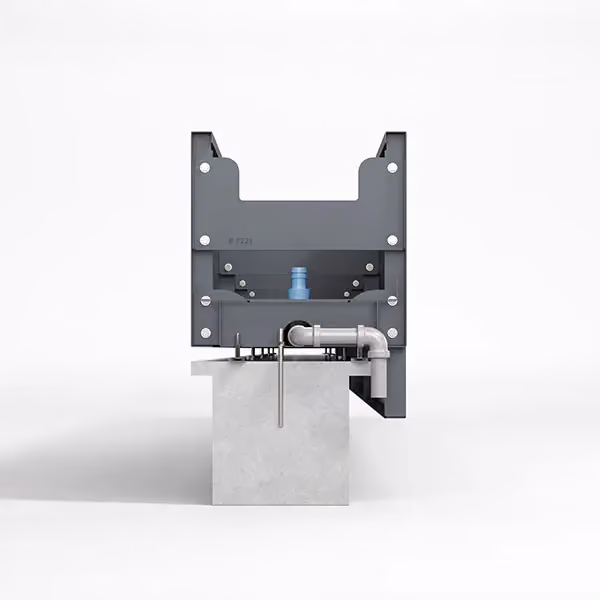

Expansion

  1. Overflow
  2. Water channeling pipe
  3. The wall can come down to cover the pedestals and drainage

Variations

COD. 035

DAV cube

Cubo DAV is a version of Cubo developed to be fixed on walls or parapets, with a system for collecting excess water and internal channelization to prevent dirt or water accumulation, with customized options for water collection and channelization.
Warranty
2 years
Shipping
Disassembled
