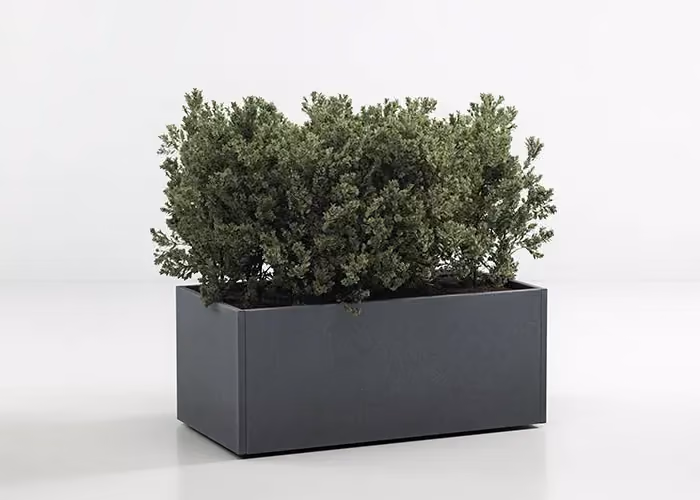

Cube

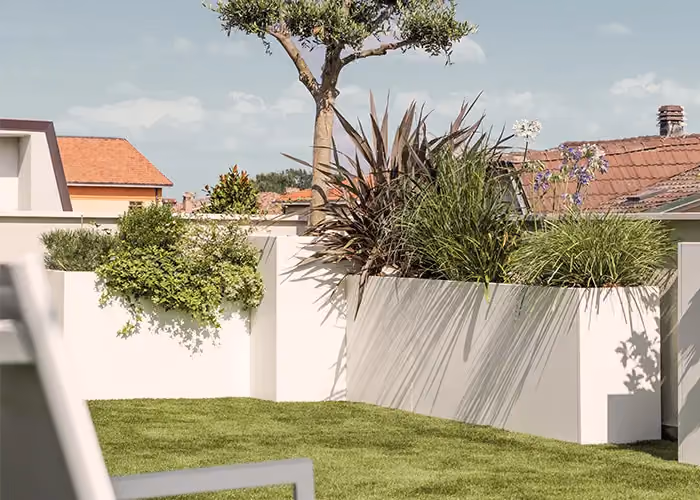

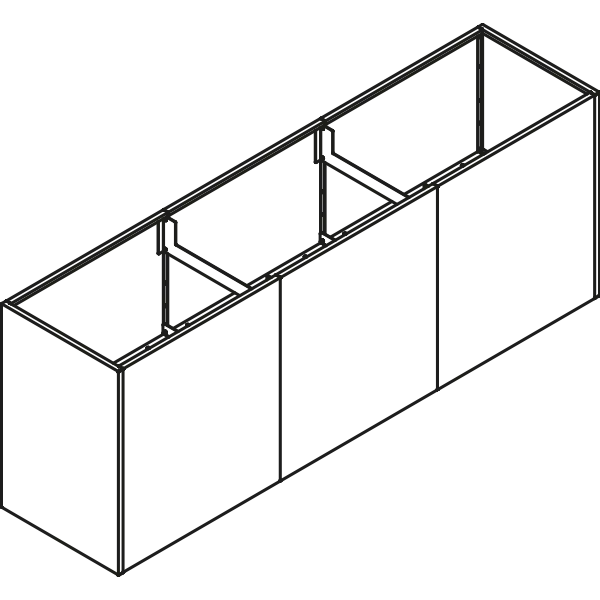

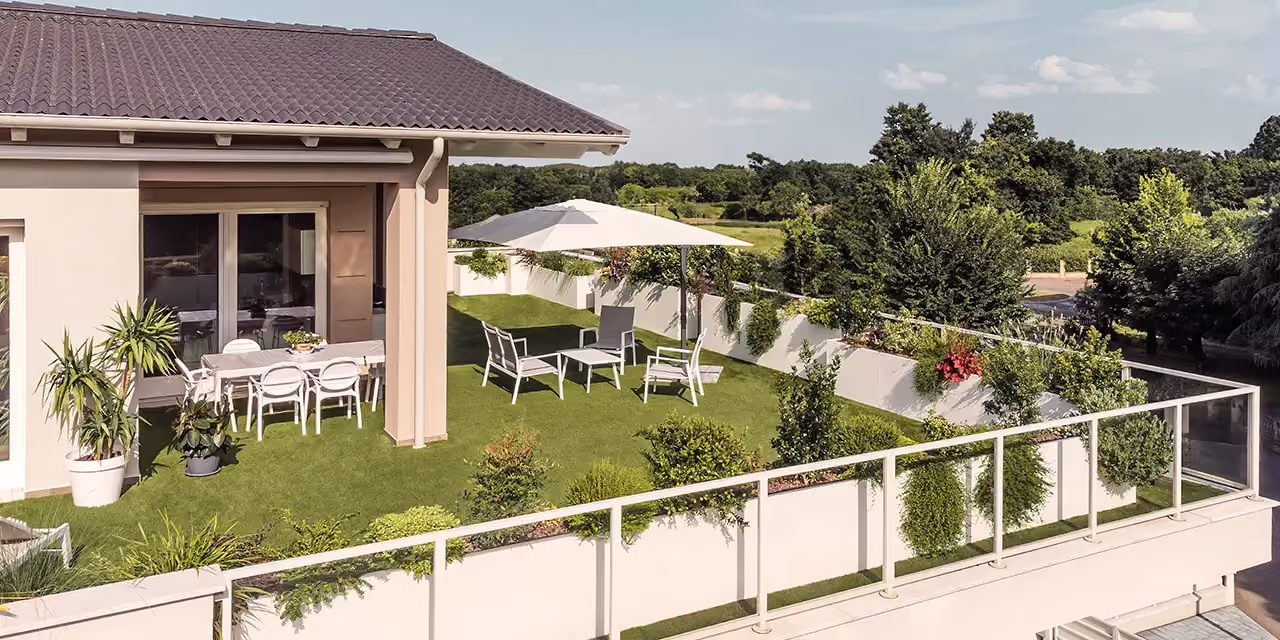

Cubo is our Alpha and Omega, the single or modular planter with height-adjustable base, the result of careful stylistic and technological research balancing functionality and beauty. With its linear simplicity, it decorates and characterises your outdoor environment, making it unique and unrepeatable. Its structure is devoid of intermediate walls in order to allow free and natural diffusion of roots. Finally, a wide range of accessories and optional extras allows for customised designs in terms of shape, size and performance.

Joints and angles

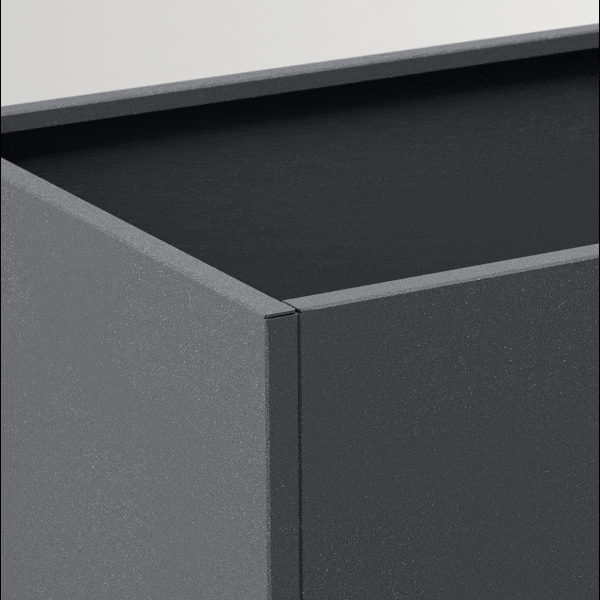

Our attention to detail is expressed through a technical and stylistic versatility of precision, with a proposal of four different solutions of joints and angles with different expressive value.

River inspections

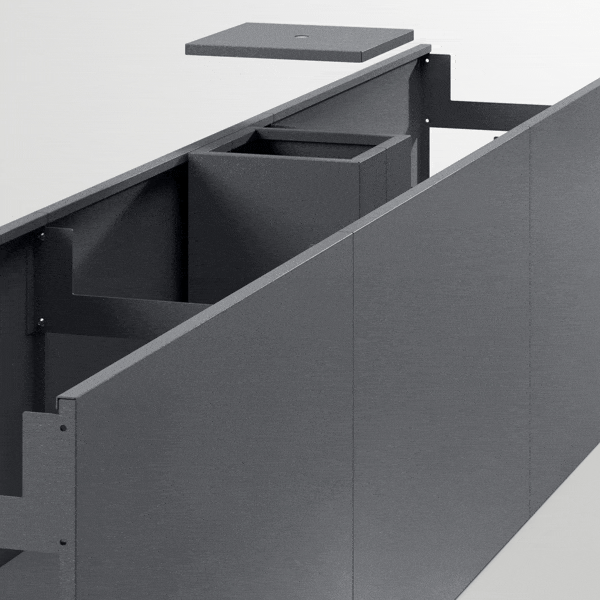

There are two inspection systems available for accessing the drain for cleaning purposes, which allow to avoid dismantling the planter. The first is a removable magnetic front panel that allows access to the drain from underneath the bottom of the planter. The second is an inspection chimney inserted inside the planter which, by means of a cover, allows access to the drain from above.

Technology and functionality

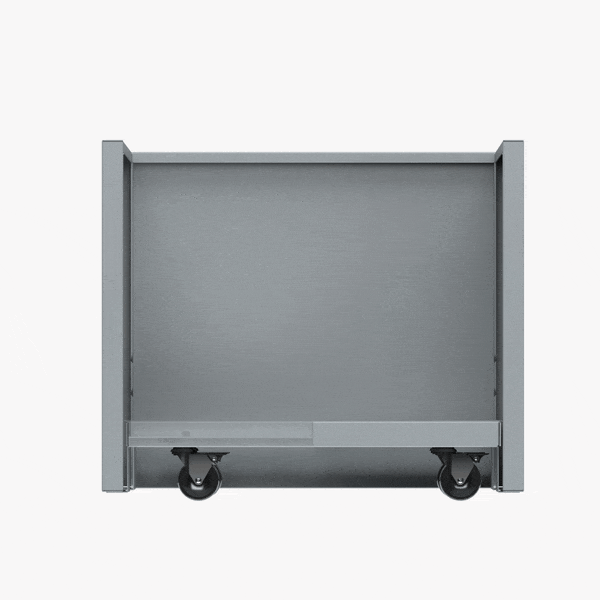

Adjustable bottom

The Cubo modular planter has a steel base that is height-adjustable, both to suit the type of plant (short-root or long-root) and the weight bearing capacity of the terrace slab. The greatest weight of a planter is not rapresented by the material it is made of, but by the weight of the water-saturated soil.

Thermal transmittance

Four Enkadrain panels are inserted in the inner walls of Cubo, which thermally insulate the soil (with a strong reduction in the thermal transmittance of the walls in summer), providing ventilation for the roots, but also for the lower layers of the planter. A watertight shaped PVC bag is placed on the steel bottom, which prevents contact between the walls, soil, humidity and fertiliser and ensures a long lifespan of the planter, as well as the overheating of the bottom.

Water reserve with controlled drainage

The second PVC bottom is equipped with an overflow drain with water retention function. When watering, the water flows through the pipe, arrives directly at the bottom and does not escape unless it reaches the overflow level. Clay and soil are given time to absorb it by capillarity and transfer it to the upper layers, ensuring a uniform moisture level over time. The drain can be cut or lengthened to increase the water reserve, and has a root inhibitor filter that prevents the water outlet hole from becoming blocked.

Ducted drain

The drain can be connected to a hose holder. In this way, excess water can be channelled and conveyed to the nearest terrace drain, without spraying and soiling the floor.

Materials

Galvanised_steel_colour_modularte

Galvanised steel

Aluminium Color Modularte

Aluminium

Stainless Steel Colour Modularte

Stainless steel

Finishes

Treatments

Brushed stainless steel Modularte

Brushed stainless steel

Cor-ten Color Modularte

Cor-ten

RAL paints

White Color Modularte

B1 White RAL 9010

Ivory Colour Modularte

B2 Ivory RAL 1013

M3 Dark Brown Modularte Colour

M3 Dark brown RAL 8019

Black Color Modularte

N1 Black

G1_Grey_light_RAL_7035_colour_modularte

G1 Light grey RAL 7035

Grey Colour Modularte

G2 Grey

Micaceous paints

M1 Tortora Colour Modularte

M1 Turtledove

G2 Light Grey Colour Modularte

G2 Light grey

G3 Dark Grey Colour Modularte

G3 Dark grey

Cement Grey Modularte Colour

G5 Cement grey

M2 Rust Colour Modularte

M2 Rust

M4 Dark brown Color Modularte

M4 Dark brown

Accessories

Cristal

Baule

Screening

Bench
